USPS integration¶
Integrating a USPS account with Odoo’s Inventory app makes it possible to calculate delivery rates and generate delivery labels within Odoo. This is accomplished by enabling the USPS shipping connector, then configuring at least one shipping method.
Enable shipping connector¶
To enable the USPS shipping connector, open the app from the main Odoo
dashboard. In the Search field, search for USPS and click Install.
After the shipping connector is installed, the USPS connector is enabled by default.
Configure USPS business account¶
A USPS business account is required to obtain the information needed to fill out the fields in the shipping method form. To create a new account, navigate to USPS’s Create Your USPS.com Account page, select the Business Account option, then follow the steps.
Create a developer app¶
After the USPS Business Customer Onboarding Portal (COP) is set up, sign in to the USPS COP to manage business account information and access the USPS APIs.
On this page, make note of the Customer Registration ID (CRID), the Master Mailer ID, and the Label Mailer ID.
Click the My Apps link at the top of the screen.
Open the Developer Apps tab. Click the Add App button. In the Add App pop-up window, specify an App Name. Select the APIs to use. Finally, click the Add App button.
A window opens, titled after the app name. Keep this window open as the shipping method is configured. The Consumer Key and Consumer Secret will be necessary in the shipping method form.
Configure shipping method¶
Once the USPS shipping connector is enabled, at least one shipping method must be configured. After doing so, the shipping method can be included in sales orders (SOs) and used to compute delivery costs and print shipping labels.
Open or create a new shipping method. Navigate to , then open an existing USPS shipping method to display its form. Alternatively, click New to open a blank form and configure a new shipping method.
Important
Enabling the USPS shipping connector automatically creates two default shipping methods: USPS Domestic and USPS International. Each of these methods is preconfigured with test credentials, allowing them to be used for testing purposes.
Before the shipping method can be used to create actual shipments, the test credentials must be replaced with credentials from a valid USPS account.
General information¶
At the top of a delivery method form are fields that configure how the method operates in Odoo. In the Provider field, select USPS from the drop-down menu if it is not already selected.
The remaining fields in this section are general to all delivery providers. For details on how to fill them out, see Third-party shipping carriers.

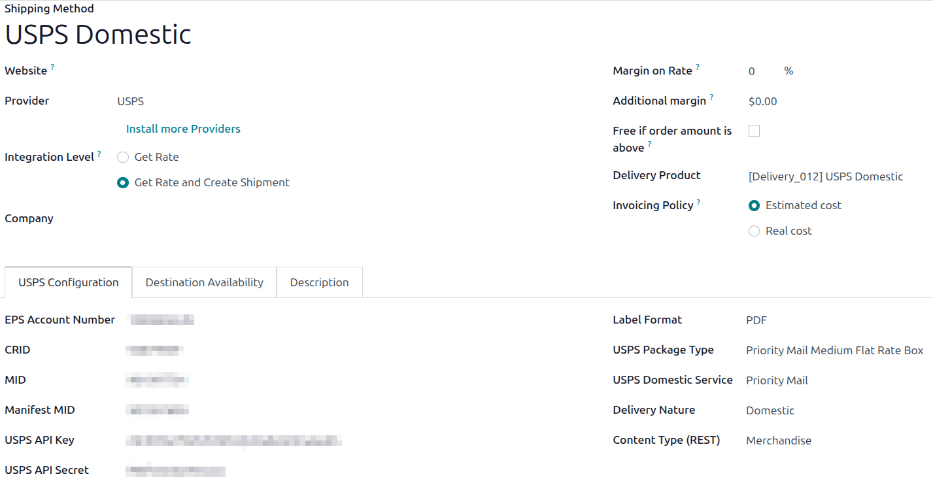

USPS Configuration tab¶
The options in the USPS Configuration tab of a USPS shipping method form are used to connect the method to a USPS account and to configure the delivery details associated with it.
Configure the following fields in the form:
EPS Number: The Enterprise Payment System (EPS) account number identifies the payment account and is used for electronic funds transfers. After a payment account is added in the COP tool, the EPS number will display, or it can be retrieved from the USPS Business Customer Gateway.
CRID: The CRID is a number that identifies a physical business address across all USPS systems and applications.
MID: This is the Master Mailer ID listed in the COP.
Manifest MID: This is the Label Mailer ID listed in the COP.
USPS API Key: This is the Consumer Key credential for the app created in the USPS COP tool.
USPS API Secret: This is the Consumer Secret credential for the app created in the USPS COP tool.
Label Format: Specify the file format that generated labels should use.
USPS Package Type: Specify or select the package type to use for shipping.
USPS Domestic Service or USPS International Service: Specify or select the service level that should be used to generate shipping labels.
Delivery Nature: Specify whether the shipping method is Domestic or International.
Content Type: Specify the type of content that will be shipped in packages with this shipping method.
In the Options section, configure the following fields:
Domestic Rating Indicator or International Rating Indicator: USPS uses specific indicators, pricing groups, and automated classification systems to distinguish between domestic and international shipments for rating purposes. These systems help ensure accurate postage calculations based on factors such as destination, package weight, dimensions, and selected mail class. Select the rating indicator that works best for shipping needs.
Processing Category: Select a packaging processing category.
Generate Return Label: For domestic shipments only. Select this checkbox to automatically generate a return label when the delivery is validated.
Turn on the USPS integration¶
After the USPS connection is set up, use the smart buttons at the top of the form to publish, turn on production mode, or activate debug logging.
Unpublished / Published: Determines if this shipping method is available on the user’s eCommerce website.
Test Environment / Production Environment: Determines whether label creation is for testing and canceled immediately (Test) or generating a real shipping label that is charged to the USPS account (Production).
No Debug / Debug Requests: Determines whether API requests and responses are logged in Odoo (turn on developer mode and go to ).
